| For Wire Rope | Dimension(inch) | Max. | Weight | |||||
| After | ||||||||
| Swage | ||||||||

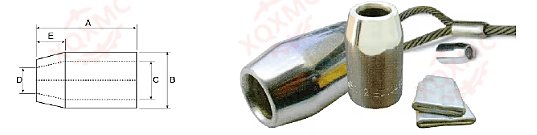

| Size(mm) | Size(inch) | A | B | D | E | C | Dimensions | kgs/100pcs |
| (inch) | ||||||||
| 6-7mm | 1/4″ | 1 | 0.66 | 0.31 | 0.28 | 0.47 | 0.57 | 2.27 |
| 8mm | 5/16″ | 1.5 | 0.91 | 0.38 | 0.44 | 0.62 | 0.75 | 6.36 |
| 9-10mm | 3/8″ | 1.5 | 0.91 | 0.47 | 0.39 | 0.66 | 0.75 | 6.36 |
| 11mm | 7/16″ | 2 | 1.22 | 0.53 | 0.65 | 0.85 | 1.01 | 15 |
| 13mm | 1/2″ | 2 | 1.22 | 0.63 | 0.56 | 0.91 | 1.01 | 13 |
| 14mm | 9/16″ | 2.75 | 1.47 | 0.7 | 0.63 | 1.03 | 1.24 | 29 |
| 16mm | 5/8″ | 2.75 | 1.47 | 0.75 | 0.63 | 1.09 | 1.24 | 26 |
| 18-19mm | 3/4″ | 3.19 | 1.72 | 0.91 | 0.84 | 1.28 | 1.46 | 40 |
| 22mm | 7/8″ | 3.56 | 2.03 | 1.03 | 1 | 1.53 | 1.68 | 60 |
| 25-26mm | 1″ | 4 | 2.28 | 1.16 | 1.13 | 1.72 | 1.93 | 89 |
| 28-29mm | 1 1/8″ | 4.8 | 2.5 | 1.28 | 1.25 | 1.94 | 2.13 | 118 |
| 31-32mm | 1 1/4″ | 5.19 | 2.78 | 1.44 | 1.41 | 2.16 | 2.32 | 161 |
| 34-35mm | 1 3/8″ | 5.81 | 3 | 1.56 | 1.56 | 2.38 | 2.52 | 192 |
| 37-38mm | 1 1/2″ | 6.25 | 3.25 | 1.69 | 1.69 | 2.63 | 2.71 | 227 |
| 44-45mm | 1 3/4″ | 7.25 | 3.84 | 1.94 | 1.97 | 3.13 | 3.1 | 366 |
| 50-52mm | 2″ | 8.5 | 4.38 | 2.25 | 2.25 | 3.63 | 3.56 | 514 |
| 56-57mm | 2 1/4″ | 9.56 | 5.03 | 2.5 | 2.53 | 4.03 | 4.12 | 879 |
| 62-64mm | 2 1/2″ | 10.5 | 5.5 | 2.75 | 2.81 | 4.5 | 4.5 | 1068 |
| 68-70mm | 2 3/4″ | 11.5 | 5.75 | 3 | 3.09 | 4.75 | 4.7 | 1271 |
| 75-76mm | 3″ | 12 | 6 | 3.25 | 3.38 | 5 | 4.96 | 1335 |
| 85-87mm | 3 1/4″ | 13 | 6.5 | 3.86 | 3.54 | 5.43 | 5.37 | 1650 |
| 87-89mm | 3 1/2″ | 14 | 7 | 3.88 | 3.94 | 5.84 | 5.77 | 2106 |
| 93-95mm | 3 3/4″ | 15 | 7.5 | 4.06 | 4.25 | 6.31 | 6.23 | 2497 |
| 100-105mm | 4″ | 16 | 8.13 | 4.38 | 4.5 | 6.81 | 6.69 | 3087 |
| 112-114mm | 4 1/2″ | 18 | 9.13 | 4.88 | 5.06 | 7.66 | 7.45 | 4540 |
| 128-130mm | 5″ | 20 | 10.52 | 5.5 | 5.63 | 8.73 | 8.28 | 6600 |
| 150-155mm | 6″ | 24 | 12.54 | 6.5 | 6.75 | 10.2 | 9.93 | 12300 |
