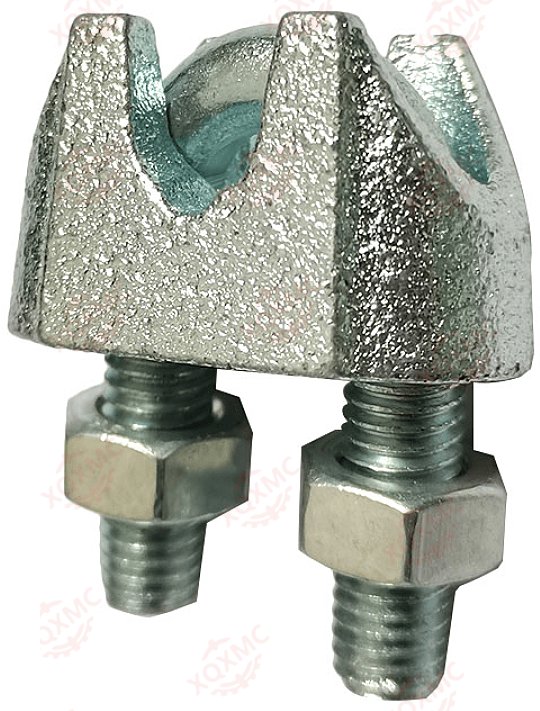

产品名称:日式卡头
标准:B型
材质:本体玛钢，U型栓Q235
规格:1/8 - 1"
表面处理:镀锌
产地:中国山东青岛
联系我们:huang@qdxqx.com
| Size | Dimensions(mm) | ||||||
| (in) | A | B | C | D | E | F | G |
| 1/8 | 9 | 12 | 12 | 4 | 9.5 | 19 | 20 |
| 3/16 | 11 | 13.5 | 14 | 5 | 10.8 | 22 | 26 |
| 1/4 | 12.5 | 15.5 | 14 | 6 | 11.5 | 25 | 26 |
| 5/16 | 15.5 | 18 | 16 | 6 | 16 | 31 | 31 |
| 3/8 | 21 | 22 | 20 | 8 | 20 | 40 | 37 |
| 1/2 | 25 | 25 | 24 | 10 | 26 | 47 | 46 |
| 5/8 | 30 | 28 | 28 | 12 | 31 | 55 | 57 |
| 11/16 | 33 | 28.5 | 30 | 12 | 35 | 58.5 | 64 |
| 3/4 | 36.5 | 31 | 34 | 16 | 36 | 65 | 71 |
| 7/8 | 40 | 36 | 38 | 16 | 43 | 72 | 77 |
| 1 | 45 | 40 | 44 | 20 | 48 | 80 | 88 |
