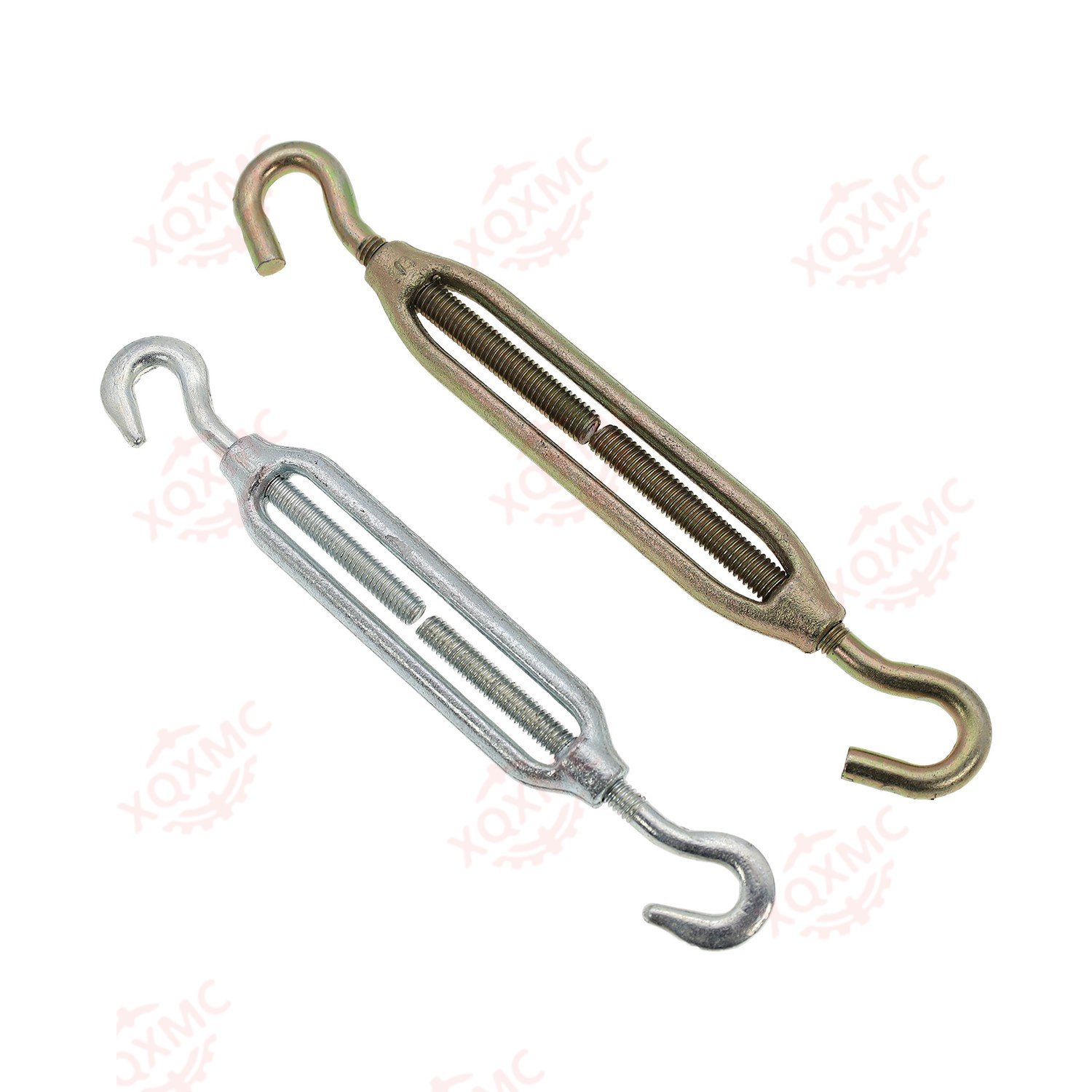

产品名：日式开体花兰
材质：Q235
规格：1/4---1 1/4(m6---32)
工艺：模锻，自由锻
表面处理：原色，电镀锌，热镀锌
产地：中国山东青岛
联系我们：huang@qdxqx.com
| Nomail | ①Body Only | ②Eye and Eye | ③Hook and Eye | ④Hook and Hook | ⑤ With Stubs | ||||||||||||
| Size(D) | A | B | C | T.L | W/Pce | F | T.L | W/Pce | T.L | W/Pce | F | T.L | W/Pce | H | 1(A) | G | W/Pce |
| 2 | |||||||||||||||||
| m/m in | m/m in | m/m | m/m | Ton | kg | m/m | Ton | kg | Ton | kg | m/m | Ton | kg | m/m | m/m | m/m | kg |
| 6 1/4 | 100 4 | 78 | 11 | 1 | 0.07 | 10 | 0.1 | 0.116 | 0.04 | 0.114 | 9 | 0.04 | 0.112 | 80 | 50 | 5.3 | 0.112 |
| 8 5/16 | 125 5 | 100 | 12.5 | 1.2 | 0.1 | 12 | 0.2 | 0.22 | 0.08 | 0.218 | 9 | 0.08 | 0.167 | 100 | 63 | 6.9 | 0.22 |
| 9 3/8 | 150 6 | 120 | 12.5 | 1.5 | 0.156 | 16 | 0.5 | 0.325 | 0.15 | 0.326 | 11 | 0.15 | 0.326 | 130 | 75 | 8.3 | 0.291 |
| 12 1/2 | 200 8 | 164 | 18 | 2 | 0.27 | 20 | 2 | 0.58 | 0.35 | 0.627 | 16 | 0.35 | 0.622 | 150 | 100 | 11.2 | 0.541 |
| 16 5/8 | 250 10 | 202 | 21.5 | 3 | 0.556 | 22 | 3 | 1.166 | 0.7 | 1.165 | 19 | 0.7 | 1.163 | 180 | 125 | 14.2 | 0.89 |
| 19 3/4 | 300 12 | 250 | 25 | 4 | 0.84 | 28 | 4 | 1.79 | 1 | 1.78 | 20 | 1 | 1.8 | 220 | 150 | 17.2 | 1.64 |
| 22 7/8 | 325 13 | 269 | 28 | 5 | 1.18 | 33 | 5 | 2.61 | 1.5 | 2.655 | 21 | 1.5 | 2.7 | 250 | 165 | 20.3 | 2.4 |
| 25 1 | 350 14 | 285 | 32.5 | 6 | 1.69 | 35 | 6 | 3.8 | 2 | 3.77 | 26 | 2 | 3.82 | 270 | 175 | 23.3 | 3.39 |
| 32 11/4 | 400 16 | 310 | 45 | 8 | 3.51 | 36x70 | 10 | 7.6 | 3 | 7.52 | 34 | 3 | 7.44 | 300 | 200 | 29 | 6.52 |
