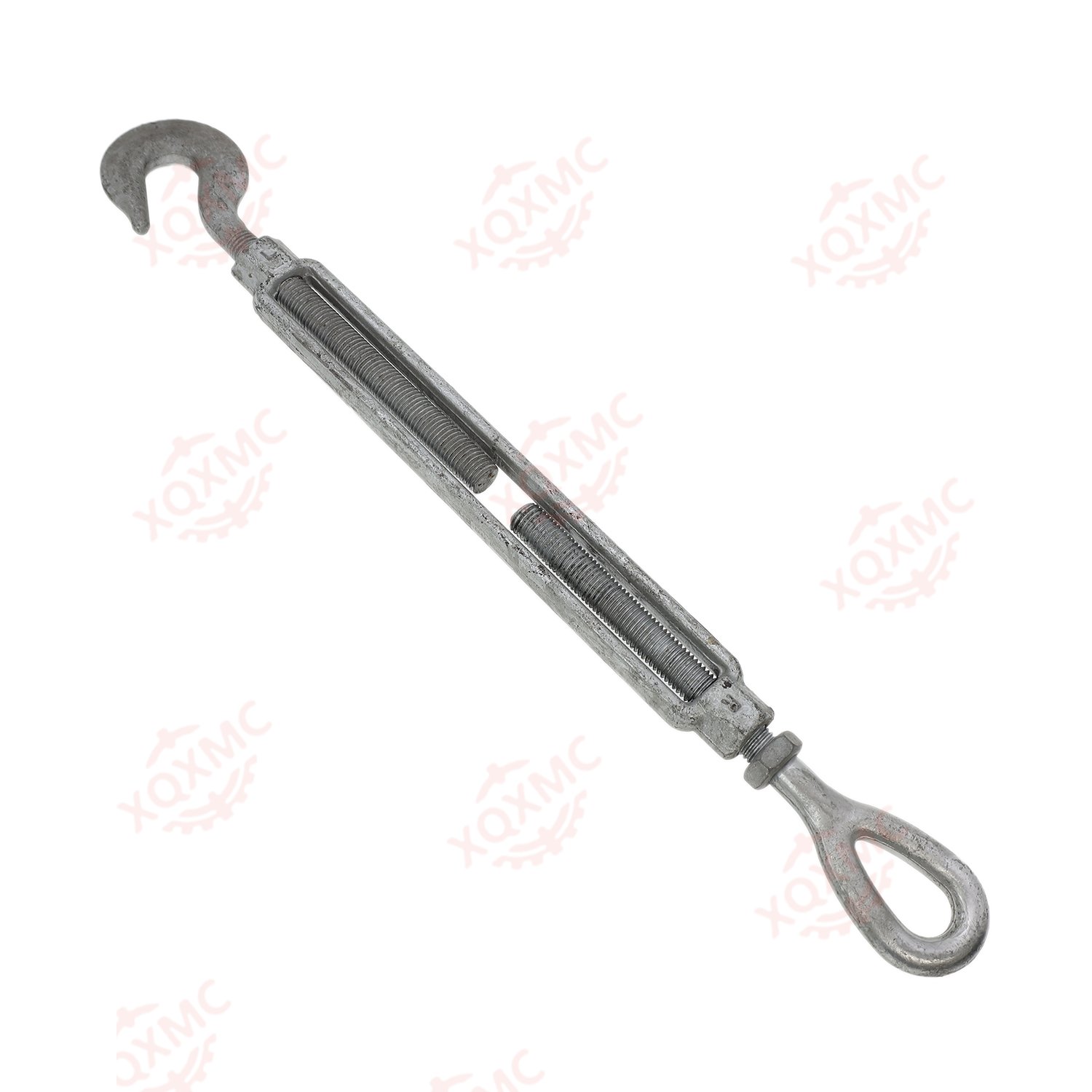

产品名：美式模锻花兰
材质：45#，合金钢
规格：1/4*4---2 3/4*24
工艺：模锻
型号：钩钩/钩眼/眼叉/叉叉/直杆
表面处理：原色，电镀锌，热镀锌
产地：中国山东青岛
联系我们：huang@qdxqx.com
 | Size （Diameter× Take-Up) | Acerage Ocerall Length with Ends in Closed Position | Approx.Weight Each(1bs) | Work Load Limit | |||||
| Pounds | |||||||||
| Eyes | Jaw& | Jaw& | Stub | Badies | Hook& | Eye&Eye | |||
| and/or | Hook Hook | Jaw&Eye | |||||||
| Hooks | Eye | Jaw | End | Only | Jaw&Jaw | ||||
| &Eye | Stub End | ||||||||
| 1/4"x4" | 81/4 | 3 | 3 | 4 | 0.29 | 0.17 | 400 | 500 | |
| 5/16"x41/2" | 91/16 | 0.5 | 35 | 0.58 | 0.46 | 0.25 | 700 | 800 | |
| 3/8"x6" | 117/8 | 0.75 | 82 | 0.93 | 0.75 | 0.3 | 1.000 | 12.000 | |
| 1/2"x6" | 135/16 | 1.5 | 1.62 | 1.68 | 1.36 | 0.55 | 1.500 | 2.200 | |
| 1/2"x9" | 165/16 | 1.75 | 1.82 | 1.85 | 1.69 | 0.74 | 1.500 | 2.200 | |
| 1/2"x12" | 195/16 | 2.18 | 2.19 | 2.2 | 2 | 0.93 | 1.500 | 2.200 | |
| 5/8"x6" | 151/2 | 2.63 | 2.59 | 2.82 | 2.15 | 0.91 | 2.250 | 3.500 | |
| 5/8"x9" | 181/2 | 3 | 3.01 | 3.25 | 2.7 | 1.2 | 2.250 | 3.500 | |
| 5/8"x12" | 211/2 | 3.25 | 3.5 | 3.75 | 3.22 | 1.5 | 2.250 | 3.500 | |
| 3/4"x6" | 17 | 3.75 | 4.25 | 4.68 | 3.25 | 1.3 | 3.000 | 5.200 | |
| 3/4"x9" | 20 | 4.5 | 5 | 5.38 | 4 | 1.7 | 3.000 | 5.200 | |
| 3/4"x12" | 23 | 5.75 | 5.75 | 6.12 | 4.65 | 2.12 | 3.000 | 5.200 | |
| 3/4"x18" | 29 | 7 | 7.25 | 7.25 | 6.12 | 2.93 | 3.000 | 5.200 | |
| 7/8"x6" | 18 | -- | -- | -- | 4.75 | 2 | -- | 7.200 | |
| 7/8"x12" | 245/8 | 8.38 | 8.88 | 9.36 | 6.67 | 3 | 4.000 | 7.200 | |
| 7/8"x18" | 305/8 | 10.25 | 10.6 | 11.44 | 8.75 | 4.12 | 4.000 | 7.200 | |
| 1"x6" | 205/8 | -- | -- | -- | 6.41 | 2.5 | -- | 10.000 | |
| 1"x12" | 265/8 | 11.25 | 12 | 12.88 | 8.9 | 3.86 | 5.000 | 10.000 | |
| 1"x18" | 325/8 | 14 | 14.75 | 16.1 | 11.7 | 5.5 | 5.000 | 10.000 | |
| 1"x24" | 385/8 | 17 | 17.75 | 18.6 | 14.3 | 7 | 5.000 | 10.000 | |
| 11/4"x6" | 20 | -- | -- | -- | 10.4 | 4 | -- | 15.200 | |
| 11/4"x12" | 297/8 | 19 | 21.2 | 23.6 | 14.2 | 5.93 | -- | 15.200 | |
| 11/4"x18" | 357/8 | 24.1 | 26 | 26.6 | 18 | 8 | - | 15.200 | |
| 11/4"x24" | 417/8 | 25 | 28.7 | 31.2 | 21.8 | 10 | - | 15.200 | |
| 11/2"x6" | 221/2 | -- | - | -- | 15.4 | 5.8 | - | 21.400 | |
| 11/2"x12" | 323/8 | 27 | 31.1 | 35.5 | 20.5 | 8.4 | - | 21.400 | |
| 11/2"x18" | 383/8 | 31.2 | 36.4 | 40.7 | 26.2 | 11.5 | - | 21.400 | |
| 11/2"x24" | 443/8 | 38.2 | 44.2 | 47.6 | 31.4 | 14.1 | - | 21.400 | |
| 13/4"x16" | - | -- | - | -- | 22.7 | 8.75 | - | 28.000 | |
| 134”x18” | 413/4 | 45 | 48.8 | 52.4 | - | - | - | 28.000 | |
