Material : Super Carbon Material

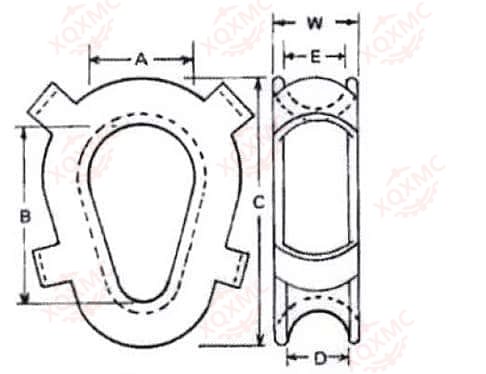

| ROPE DIAMETER | Dimensions(mm) | WEIGHT(kg) | ||||||
| (mm) | A | B | C | D | E | F | G | APPROX |
| Ø16/Ø22 | 111.5 | 65.0 | 32.0 | 10.0 | 37.0 | 28.0 | 35.0 | TBA |
| Ø24/Ø30 | 146.5 | 90.0 | 51.0 | 28.0 | 47.0 | 37.0 | 40.0 | 1.25 |
| Ø32/Ø40 | 196.0 | 127.0 | 85.0 | 42.0 | 57.0 | 46.0 | 50.0 | 2.25 |
| Ø44 | 205.0 | 140.0 | 86.0 | 42.0 | 64.0 | 52.0 | 54.0 | 3.40 |
| Ø48/Ø56 | 247.0 | 149.0 | 92.0 | 44.0 | 85.0 | 70.0 | 76.0 | 5.30 |
| Ø64 | 274.5 | 159.0 | 102.0 | 54.0 | 95.0 | 76.0 | 79.0 | 7.90 |
| Ø72 | 316.0 | 194.0 | 120.0 | 68.0 | 102.0 | 83.0 | 89.0 | 12.25 |
| Ø80 | 349.0 | 217.5 | 127.0 | 70.0 | 108.0 | 89.0 | 98.0 | 14.45 |
| Ø88/Ø96 | 403.5 | 241.0 | 156.0 | 86.0 | 140.0 | 114.0 | 117.0 | 26.40 |
| Ø112 | 477.5 | 280.0 | 184.0 | 104.0 | 170.0 | 140.0 | 145.0 | 30.00 |
