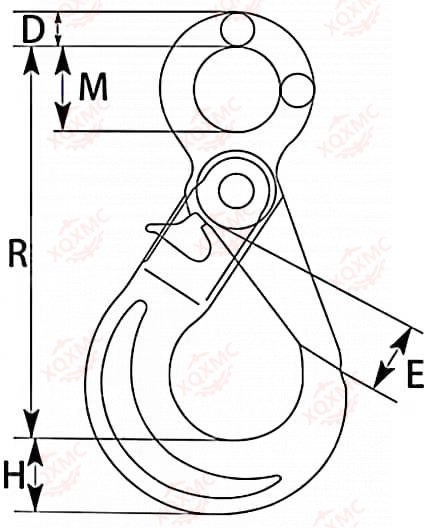

| Chain | Dimensions(mm) | W.L.L. | Weight | |||
| Size(mm) | M | E | R | H | (T) | (KG) |
| 6 | 22.0 | 28.3 | 110.0 | 19.5 | 1.12 | 0.50 |
| 7/8 | 24.8 | 33.7 | 132.0 | 24.0 | 2.00 | 0.84 |
| 10 | 32.0 | 43.1 | 167.0 | 30.0 | 3.15 | 1.52 |
| 13 | 40.0 | 50.9 | 204.0 | 40.0 | 5.30 | 3.10 |
| 16 | 56.5 | 61.6 | 250.0 | 50.5 | 8.00 | 6.10 |
| 20 | 62.6 | 84.0 | 269.0 | 55.0 | 12.50 | 8.10 |
| 22 | 70.0 | 77.1 | 312.5 | 67.0 | 15.00 | 12.60 |
| 26 | 80.5 | 97.1 | 362.0 | 75.0 | 21.20 | 18.00 |
| 32 | 105.0 | 168.0 | 470.0 | 97.0 | 31.50 | 44.40 |
| Minimum Breaking load=4×W.L.L.(Working load Limited) | ||||||
