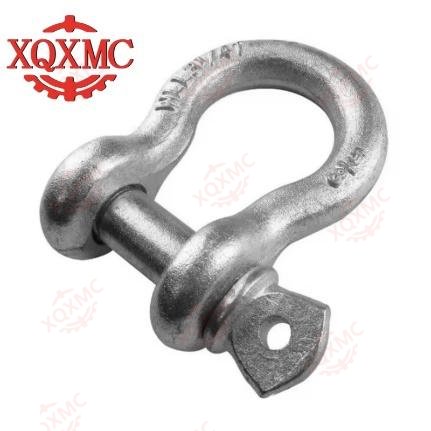

SCREW PIN G-209 S-209 |  | Screw pin anchor shackles meet the requirements of Federal Specification RR-C-271D Type IVA,Grade A.Class 2. |
ROUND PIN G-213 S-213 |  | Round pin anchor shackles meet the requirements of Federal Specification RR-C-271D Type IVA,Grade A.Class 2. |

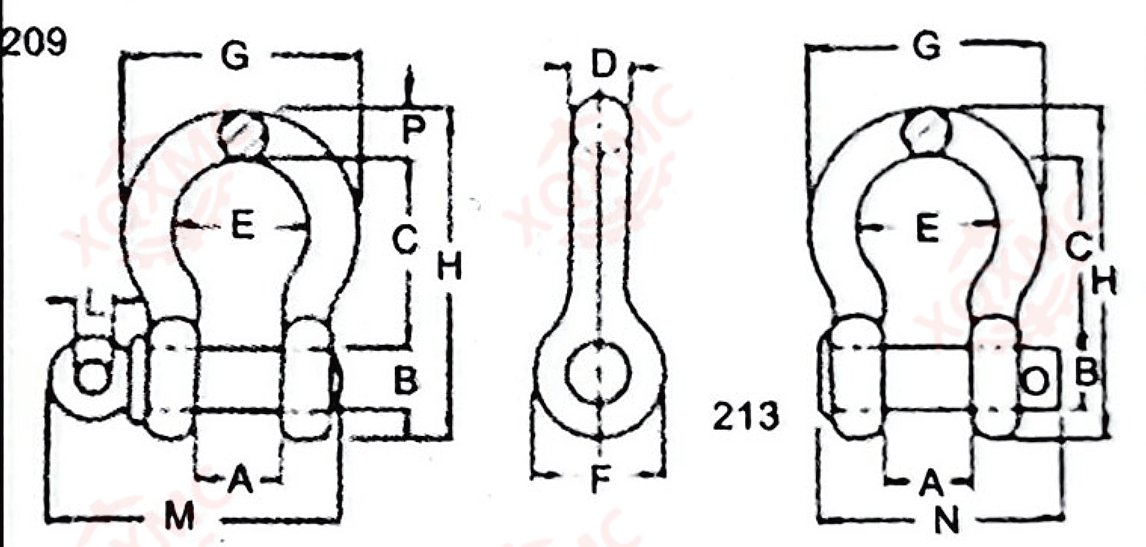

| Nominal | Working | Dimensions | Weight Each | ||||||||||||
| (in.) | (Ibs.) | ||||||||||||||
| Size | load | A | B | C | D | E | F | G | H | L | M | N | P | G-209 | G-213 |
| (in.) | Limit | S-209 | S-213 | ||||||||||||
| (tons) | |||||||||||||||
| 3/16 | 1/3 | 0.38 | 0.25 | 0.88 | 0.19 | 0.6 | 0.56 | 0.98 | 1.47 | 0.16 | 1.12 | -- | 0.19 | 0.05 | -- |
| 1/4 | 1/2 | 0.47 | 0.31 | 1.13 | 0.25 | 0.78 | 0.61 | 1.28 | 1.84 | 0.19 | 1.38 | 1.34 | 0.25 | 0.12 | 0.13 |
| 5/16 | 3/4 | 0.53 | 0.38 | 1.22 | 0.31 | 0.84 | 0.75 | 1.47 | 2.09 | 0.22 | 1.66 | 1.59 | 0.31 | 0.19 | 0.17 |
| 3/8 | 1 | 0.66 | 0.44 | 1.44 | 0.38 | 1.03 | 0.91 | 1.78 | 2.49 | 0.25 | 2.03 | 1.86 | 0.38 | 0.31 | 0.25 |
| 7/16 | 11/2 | 0.75 | 0.5 | 1.69 | 0.44 | 1.16 | 1.06 | 2.03 | 2.91 | 0.31 | 2.38 | 2.13 | 0.44 | 0.38 | 0.38 |
| 1/2 | 2 | 0.81 | 0.63 | 1.88 | 0.5 | 1.31 | 1.19 | 2.31 | 3.28 | 0.38 | 2.69 | 2.38 | 0.5 | 0.63 | 0.7 |
| 5/8 | 31/4 | 1.06 | 0.75 | 2.38 | 0.63 | 1.69 | 1.5 | 2.94 | 4.19 | 0.44 | 3.34 | 2.91 | 0.69 | 1.38 | 1.5 |
| 3/4 | 43/4 | 1.25 | 0.88 | 2.81 | 0.75 | 2 | 1.81 | 3.5 | 4.97 | 0.5 | 3.97 | 3.44 | 0.81 | 2.25 | 2.32 |
| 7/8 | 61/2 | 1.44 | 1 | 3.31 | 0.88 | 2.28 | 2.09 | 4.03 | 5.83 | 0.5 | 4.5 | 3.81 | 0.97 | 3.38 | 3.4 |
| 1 | 81/2 | 1.69 | 1.13 | 3.75 | 1 | 2.69 | 2.38 | 4.69 | 6.56 | 0.56 | 5.07 | 4.53 | 1.06 | 5.32 | 5 |
| 11/8 | 91/2 | 1.81 | 1.25 | 4.25 | 1.16 | 2.91 | 2.69 | 5.16 | 7.47 | 0.63 | 5.59 | 5.13 | 1.25 | 6.81 | 6.97 |
| 11/4 | 12 | 2.03 | 1.38 | 4.69 | 1.29 | 3.25 | 3 | 5.75 | 8.25 | 0.69 | 6.16 | 5.5 | 1.38 | 9.5 | 9.75 |
| 13/8 | 131/2 | 2.25 | 1.5 | 5.25 | 1.42 | 3.63 | 3.31 | 6.38 | 9.16 | 0.75 | 6.84 | 6.13 | 1.5 | 13.25 | 13.25 |
| 11/2 | 17 | 2.38 | 1.63 | 5.75 | 1.54 | 3.88 | 3.63 | 6.88 | 10 | 0.81 | 7.35 | 6.5 | 1.62 | 17.2 | 17.25 |
| 13/4 | 25 | 2.88 | 2 | 7 | 1.84 | 5 | 4.19 | 8.86 | 12.34 | 1 | 9.08 | 7.75 | 2.25 | 30.38 | 29.46 |
| 2 | 35 | 3.25 | 2.25 | 7.75 | 2.08 | 5.75 | 4.81 | 9.97 | 13.68 | 1.22 | 10.34 | 8.75 | 2.4 | 45 | 45.75 |
| 21/2 | 55 | 4.13 | 2.75 | 10.5 | 2.71 | 7.25 | 5.69 | 12.87 | 17.84 | 1.38 | 13 | -- | 3.13 | 85.75 | -- |
NOTE:
* Drop Forged,Quenched and Tempered,With Alloy Pins.
*Max Proof Load is 2.2 Times the Working Load Limit,Min Break Strength is 6 Times the WLL.
