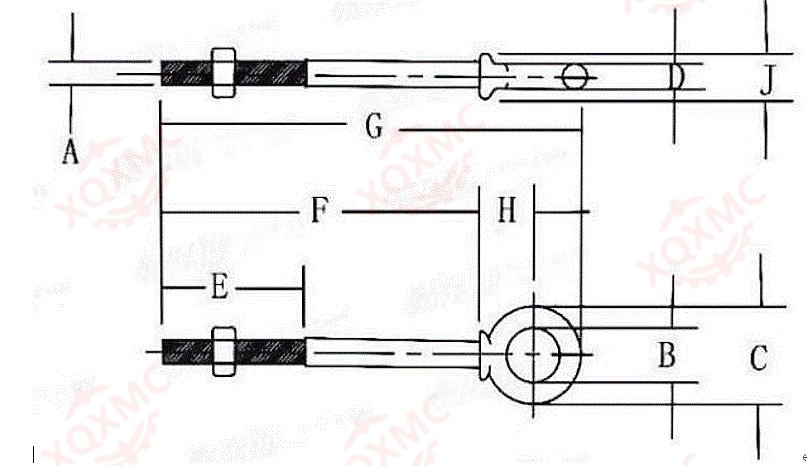

| Shank | W.L.L. | Weight | Dimensions(in) | ||||||||
| Dia &Length | Per 100 | ||||||||||
| (in) | (Ibs) | (lbs) | A | B | C | D | E | F | G | H | J |
| 1/4x2 | 500 | 6.60 | 0.25 | 0.50 | 0.88 | 0.19 | 1.50 | 2.00 | 2.94 | 0.50 | 0.47 |
| 1/4x4 | 500 | 9.10 | 0.25 | 0.50 | 0.88 | 0.19 | 2.50 | 4.00 | 4.94 | 0.50 | 0.47 |
| 5/16x2-1/4 | 800 | 12.50 | 0.31 | 0.62 | 1.12 | 0.25 | 1.50 | 2.25 | 3.50 | 0.69 | 0.56 |
| 5/16x4-1/4 | 800 | 18.80 | 0.31 | 0.62 | 1.12 | 0.25 | 2.50 | 4.25 | 5.50 | 0.69 | 0.56 |
| 3/8x2-1/2 | 1200 | 21.40 | 0.38 | 0.75 | 1.38 | 0.31 | 1.50 | 2.50 | 3.97 | 0.78 | 0.66 |
| 3/8 x4-1/2 | 1200 | 25.30 | 0.38 | 0.75 | 1.38 | 0.31 | 2.50 | 4.50 | 5.97 | 0.78 | 0.66 |
| 1/2x3-1/4 | 2200 | 42.60 | 0.50 | 1.00 | 1.75 | 0.38 | 1.50 | 3.25 | 5.12 | 1.00 | 0.91 |
| 1/2x6 | 2200 | 56.80 | 0.50 | 1.00 | 1.75 | 0.38 | 3.00 | 6.00 | 7.88 | 1.00 | 0.91 |
| 5/8x4 | 3500 | 68.60 | 0.62 | 1.25 | 2.25 | 0.50 | 2.00 | 4.00 | 6.44 | 1.31 | 1.12 |
| 5/8x6 | 3500 | 102.40 | 0.62 | 1.25 | 2.25 | 0.50 | 3.00 | 6.00 | 8.44 | 1.31 | 1.12 |
| 3/4x4-1/2 | 5200 | 144.50 | 0.75 | 1.50 | 2.75 | 0.62 | 2.00 | 4.50 | 7.44 | 1.56 | 1.38 |
| 3/4x6 | 5200 | 167.50 | 0.75 | 1.50 | 2.75 | 0.62 | 3.00 | 6.00 | 8.94 | 1.56 | 1.38 |
| 7/8x5 | 7200 | 225.00 | 0.88 | 1.75 | 3.25 | 0.75 | 2.50 | 5.00 | 8.46 | 1.84 | 1.56 |
| 1x6 | 10000 | 366.30 | 1.00 | 2.00 | 3.75 | 0.88 | 3.00 | 6.00 | 9.97 | 2.09 | 1.81 |
| 1x9 | 10000 | 422.50 | 1.00 | 2.00 | 3.75 | 0.88 | 4.00 | 9.00 | 12.97 | 2.09 | 1.81 |
| 1-1/4x8 | 15200 | 650.00 | 1.25 | 2.50 | 4.50 | 1.00 | 4.00 | 8.00 | 12.72 | 2.47 | 2.28 |
| 1-1/4x12 | 15200 | 795.00 | 1.25 | 2.50 | 4.50 | 1.00 | 4.00 | 12.00 | 16.72 | 2.47 | 2.28 |
| 1-1/2x15 | 21400 | 1425.00 | 1.50 | 3.00 | 5.50 | 1.25 | 6.00 | 15.00 | 20.75 | 3.00 | 2.75 |
