| Size | WLL | WLL | DIMENSIONS | Weight | |||||
| d1 | d2 | d3 | e | h | k | ||||
| d | t | t | mm | mm | mm | mm | mm | mm | %kg |
| M 6 | - | 一 | 20 | 36 | 20 | 8.5 | 18 | 8 | 4.9 |
| M 8 | 0.14 | 0.095 | 20 | 36 | 20 | 8.5 | 18 | 8 | 5.0 |
| M 10 | 0.23 | 0.17 | 25 | 45 | 25 | 10 | 22 | 10 | 9.0 |
| M 12 | 0.34 | 0.24 | 30 | 54 | 30 | 11 | 26 | 12 | 16.0 |
| M 10 | 0.7 | 0.5 | 35 | 63 | 35 | 13 | 30 | 14 | 24.0 |
| M 20 | 1.2 | 0.83 | 40 | 72 | 40 | 16 | 35 | 16 | 36.0 |
| M 22 | 1.5 | 1.05 | 45 | 81 | 45 | 18 | 40 | 18 | 58.0 |
| M 24 | 1.8 | 1.27 | 50 | 90 | 50 | 20 | 45 | 20 | 72.0 |
| M 27 | 2.5 | 1.65 | 50 | 90 | 50 | 20 | 45 | 20 | 70.0 |
| M 30 | 3.6 | 2.6 | 65 | 108 | 60 | 25 | 55 | 24 | 132.0 |
| M 33 | 4.3 | 3.2 | 65 | 108 | 60 | 25 | 55 | 24 | 130.0 |
| M 36 | 5.1 | 3.7 | 75 | 126 | 70 | 30 | 65 | 28 | 208.0 |
| M 39 | 6.1 | 4.3 | 75 | 126 | 70 | 30 | 65 | 28 | 202.0 |
| M 42 | 7 | 5 | 85 | 144 | 80 | 35 | 75 | 32 | 311.0 |
| M 45 | 8 | 5.5 | 85 | 144 | 80 | 35 | 75 | 32 | 304.0 |
| M 48 | 8.6 | 6.1 | 100 | 166 | 90 | 40 | 85 | 38 | 502.0 |
| M 52 | 9.9 | 7.3 | 100 | 166 | 90 | 40 | 85 | 38 | 495.0 |
| M 56 | 11.5 | 8.3 | 110 | 184 | 100 | 45 | 95 | 42 | 669.0 |
| M 64 | 16 | 11 | 120 | 206 | 110 | 50 | 105 | 48 | 930.0 |
*)These sizes should be avoided,if possible.

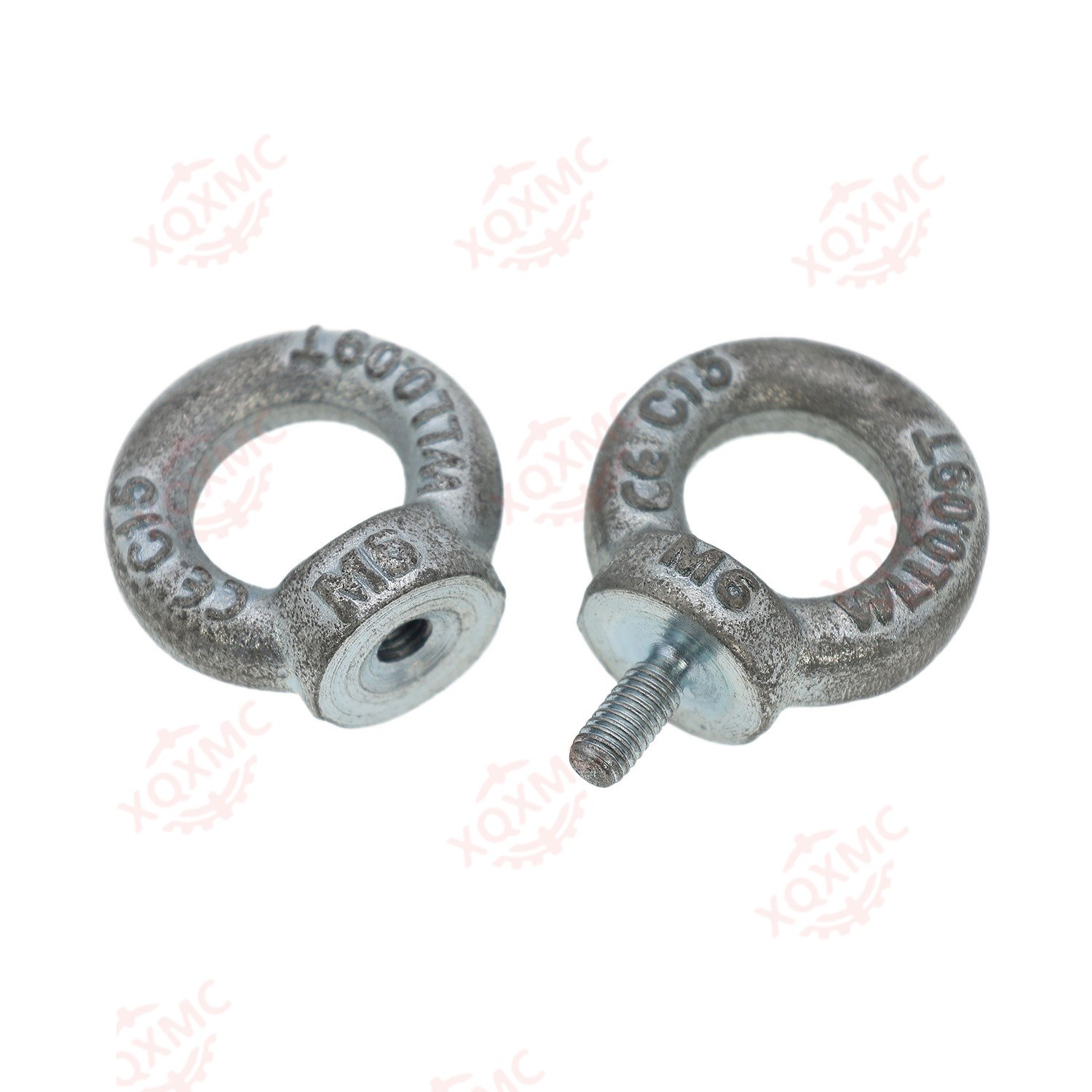

Model:Drop forged,fused,sdlfcoloured
Material and Thread:C 15/DIN 11/DIN 267.
