Grade 60
MBS=4×WLL

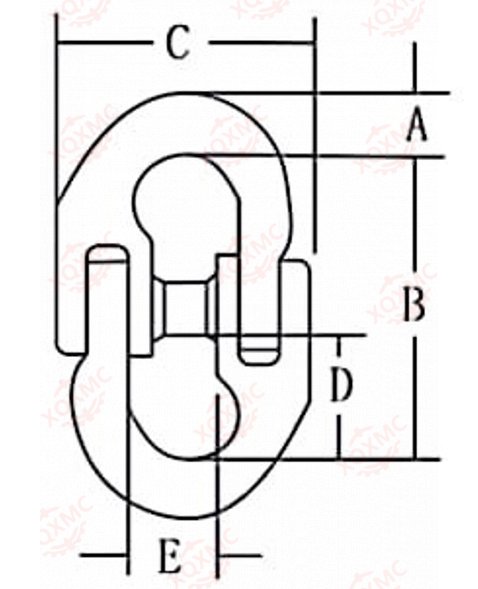

| Chain | Working | Weight | Dimensins | Dia.Hole | ||||
| Size | Load | Each | (in) | to | ||||
| (in) | Limit | (1bs) | A | B | C | D | E | Accept |
| (1bs) | Link | |||||||
| 1/4 | 3250 | 25 | 2.06 | 2.06 | 0.78 | 0.78 | 0.78 | 0.50 |
| 3/8 | 6600 | 60 | 2.72 | 2.72 | 1.06 | 1.06 | 1.09 | 0.66 |
| 1/2 | 11250 | 1.25 | 3.34 | 3.34 | 1.26 | 1.26 | 1.41 | 0.88 |
| 5/8 | 16500 | 2.30 | 3.91 | 3.91 | 1.56 | 1.56 | 1.69 | 1.06 |
| 3/4 | 23000 | 4.00 | 4.84 | 4.84 | 1.97 | 1.97 | 2.00 | 1.19 |
| 7/8 | 28750 | 5.75 | 5.81 | 5.81 | 2.38 | 2.38 | 2.12 | 1.38 |
| 1 | 38750 | 8.00 | 6.48 | 6.48 | 2.84 | 2.84 | 2.55 | 1.47 |
| 1 1/4 | 57500 | 15.00 | 8.48 | 8.48 | 3.77 | 3.77 | 3.77 | 1.73 |
Use Method
