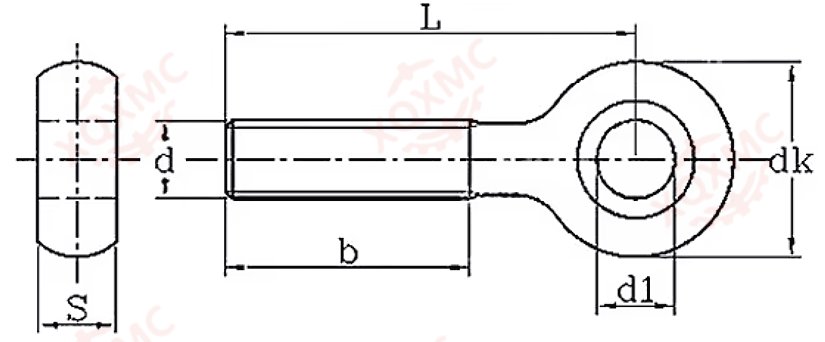

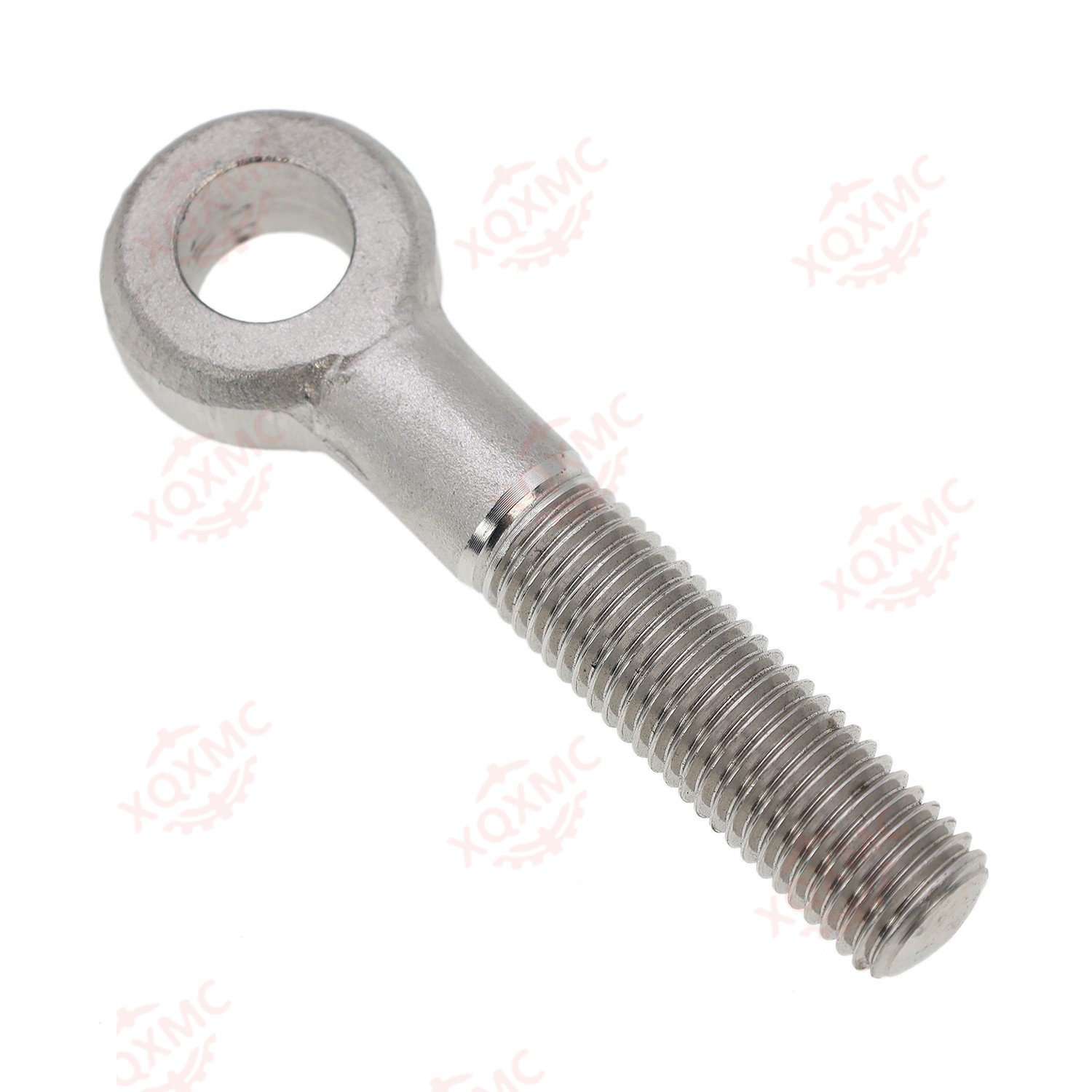

Echnical Notes: Eye Swing Bolt Conform to DIN444
Material : Stainless Steel 304/316
Processing : Forged and Full Machining
| d | M5 | M6 | M8 | M10 | M12 | M16 | M20 | M24 | M27 | M30 | M33 | M36 | M39 | ||
| P | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3 | 3 | 3.5 | 3.5 | 4 | 4 | ||
| S | Type A | max | 8 | 9 | 11 | 14 | 17 | 19 | 24 | 28 | 30 | 34 | 38 | 41 | 46 |
| min | 7.52 | 8.52 | 10.3 | 13.3 | 16.3 | 18.16 | 23.16 | 27.2 | 29.16 | 33 | 37 | 40 | 45 | ||
| Type B | max | 6 | 7 | 9 | 12 | 14 | 17 | 22 | 25 | 27 | 30 | 34 | 38 | 41 | |
| and C | min | 5.88 | 6.85 | 8.85 | 11.82 | 13.82 | 16.82 | 21.79 | 24.8 | 26.79 | 29.8 | 33.75 | 37.75 | 40.75 | |
| b | L<125 | 16 | 18 | 22 | 26 | 30 | 38 | 46 | 54 | 60 | 66 | / | / | / | |
| 125<L< | / | / | 28 | 32 | 36 | 44 | 52 | 50 | 66 | 72 | 78 | 84 | 90 | ||
| 200 | |||||||||||||||
| L>200 | / | / | / | / | 49 | 57 | 65 | 73 | 79 | 85 | 91 | 97 | 103 | ||
| d1 H9 | 5 | 6 | 8 | 10 | 12 | 16 | 18 | 22 | 24/25 | 27/28 | 30 | 32/33 | 35/36 | ||
| dk | Tpye A | max | 12 | 14 | 18 | 20 | 25 | 32 | 40 | 45 | 50 | 55 | 60 | 65 | 70 |
| min | 10.9 | 12.9 | 16.9 | 18.7 | 23.7 | 30.4 | 38.4 | 43.4 | 48.4 | 53.1 | 58.1 | 63.1 | 68.1 | ||
| Tpye B | max | 12 | 14 | 18 | 20 | 25 | 32 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | |
| and C | min | 11.57 | 13.6 | 17.57 | 19.48 | 24.48 | 31.38 | 39.38 | 44.4 | 49.38 | 54.3 | 59.26 | 64.26 | 69.26 | |
