Material : Stainless Steel

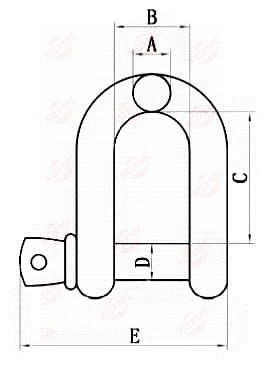

| SIZE | A | B | C | D | E | WLL(kg) | WT(KG) |
| 4mm | 4 | 8 | 16 | 4 | 24 | 60 | 0.008 |
| 5mm | 5 | 10 | 20 | 5 | 30 | 80 | 0.016 |
| 6mm | 6 | 12 | 24 | 6 | 35 | 100 | 0.025 |
| 8mm | 8 | 16 | 32 | 8 | 43.5 | 200 | 0.059 |
| 10mm | 10 | 20 | 40 | 10 | 56 | 320 | 0.115 |
| 12mm | 12 | 24 | 48 | 12 | 66 | 520 | 0.198 |
| 14mm | 14 | 28 | 56 | 14 | 75.5 | 700 | 0.306 |
| 16mm | 16 | 32 | 64 | 16 | 88 | 800 | 0.461 |
| 18mm | 18 | 36 | 72 | 18 | 99.5 | 950 | 0.672 |
| 20mm | 20 | 40 | 80 | 20 | 109 | 1100 | 0.875 |
| 22mm | 22 | 44 | 90 | 22 | 120 | 1500 | 1.257 |
| 24mm | 24 | 50 | 96 | 24 | 135 | 2100 | 1.655 |
| 28mm | 28 | 56 | 112 | 28 | 148 | 3000 | 2.496 |
